Rectangular Delineator

NO.

DRB-1Y/1W/YW

The contour marker, national standard number GB/T 24970—2020, is a traffic safety facility set along the edges of roads to display the road boundary profile, guide vehicles for normal driving, and has retroreflective properties. Functionally, the contour marker serves as a visual guidance facility.

Key words:

Rectangular Delineator

Classification:

Product Consulting:

Model	DRB-1Y/1W/YW
Size

Product Description:

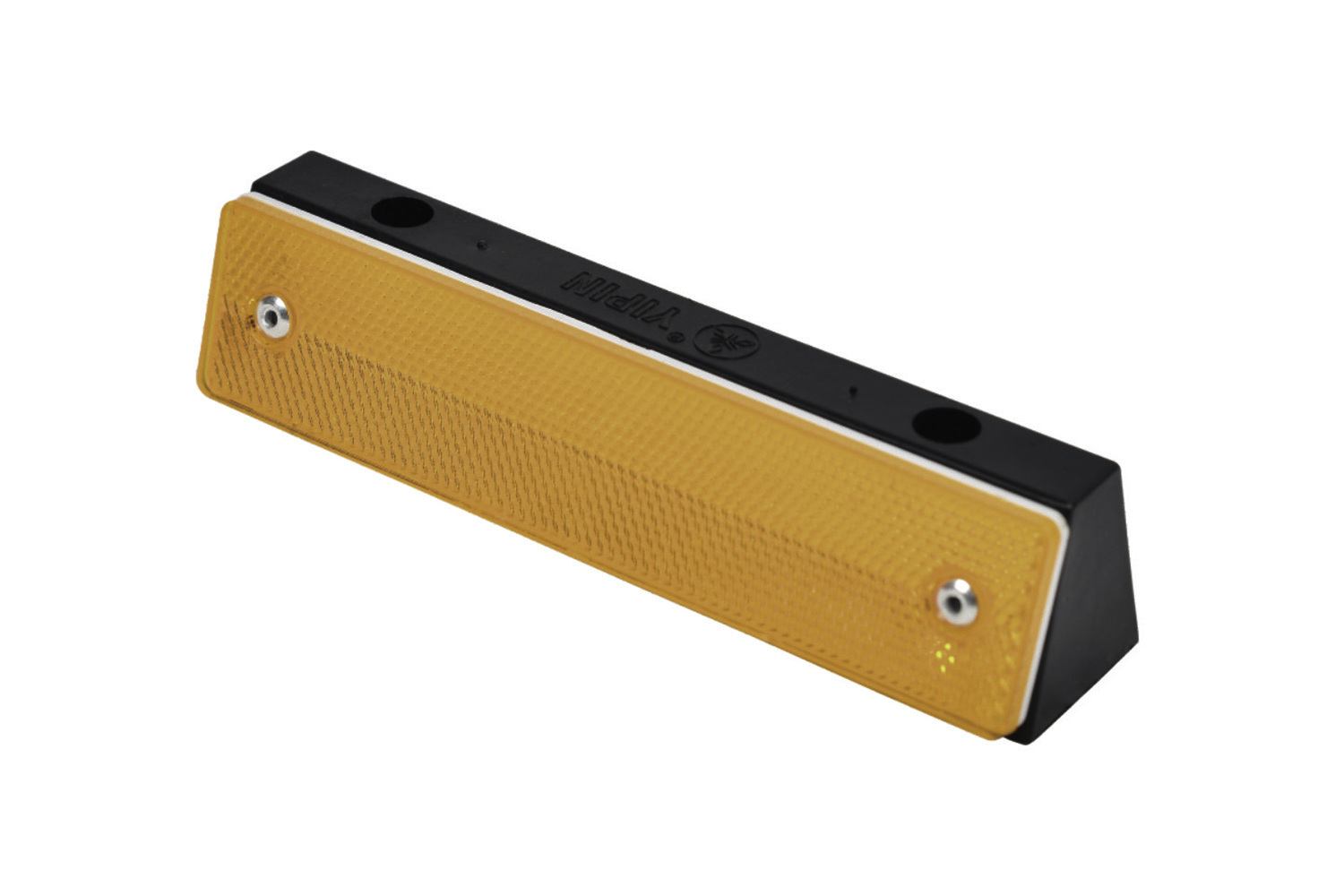

DRB-1Y/1W/YW Rectangular Profile Marker

Plastic bracket, lattice reflective material. The reflective sheet is processed using German optical molds, and the material is Japanese PMMA; the bracket is made of 2.8mm polypropylene (PP) with installation hole ∮5mm.

1. The wavy beam steel guardrail type profile marker is installed in the groove in the middle of the wavy beam guardrail, and the rear base plate is fixed to the connecting bolts of the steel guardrail;

2. The concrete guardrail profile marker is installed on the side wall of the concrete guardrail, and the rear base plate is fixed with anchor bolts;

3. The profile markers should be arranged continuously and symmetrically, with the reflector on the left side of the driving direction being yellow, and the reflector on the right side of the driving direction being white;

4. The spacing of the profile markers is determined by the radius of the route curve..
