Column - type Sight Edge Indicator
NO.
DPA-Y(W)
The contour marker, national standard number GB/T 24970—2020, is a traffic safety facility set along the edges of roads to display the road boundary profile, guide vehicles for normal driving, and has retroreflective properties. Functionally, the contour marker serves as a visual guidance facility.
Key words:
Classification:
| Model | DPA-Y(W) |
| Size | 114(140)*350 |
Product Description:

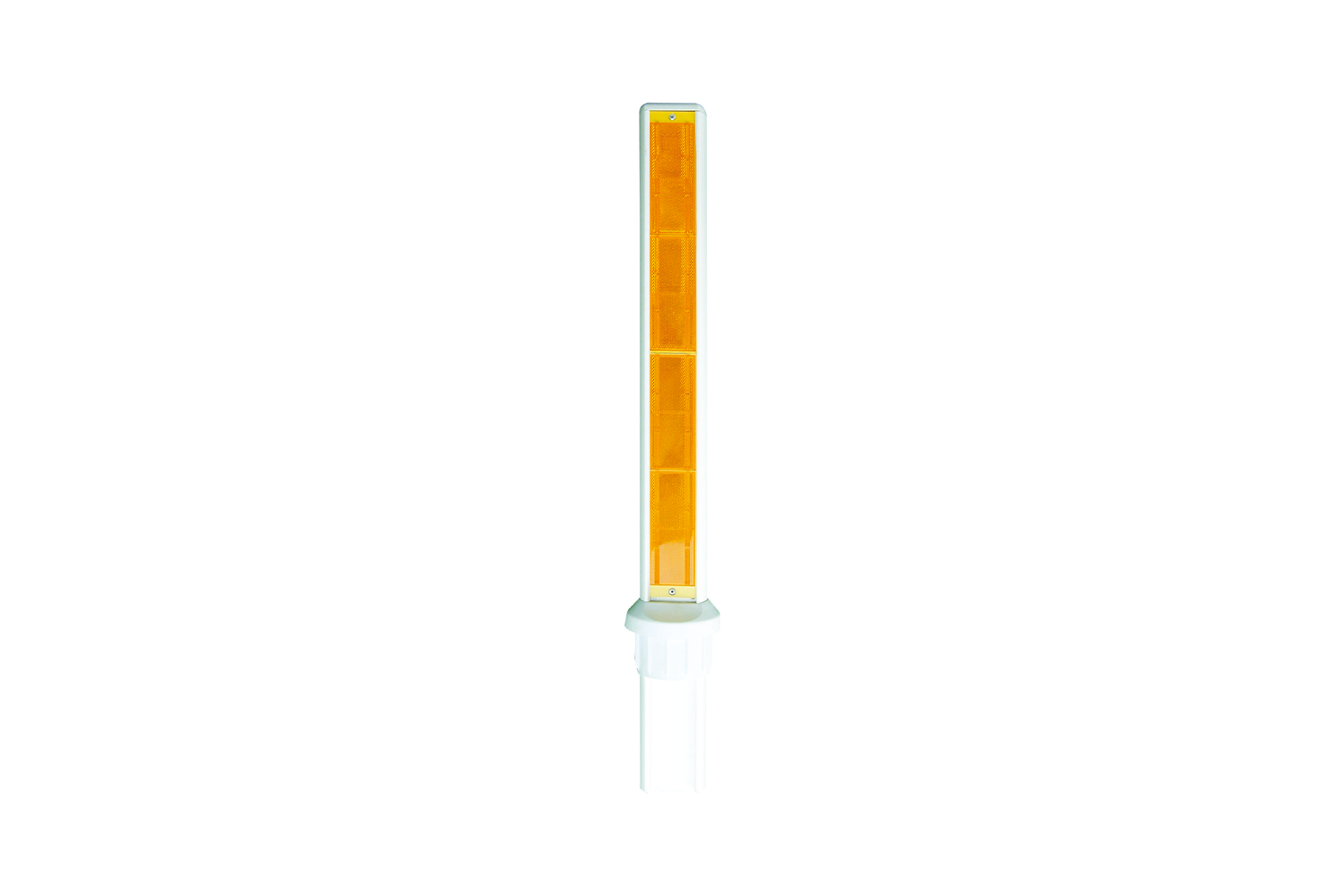

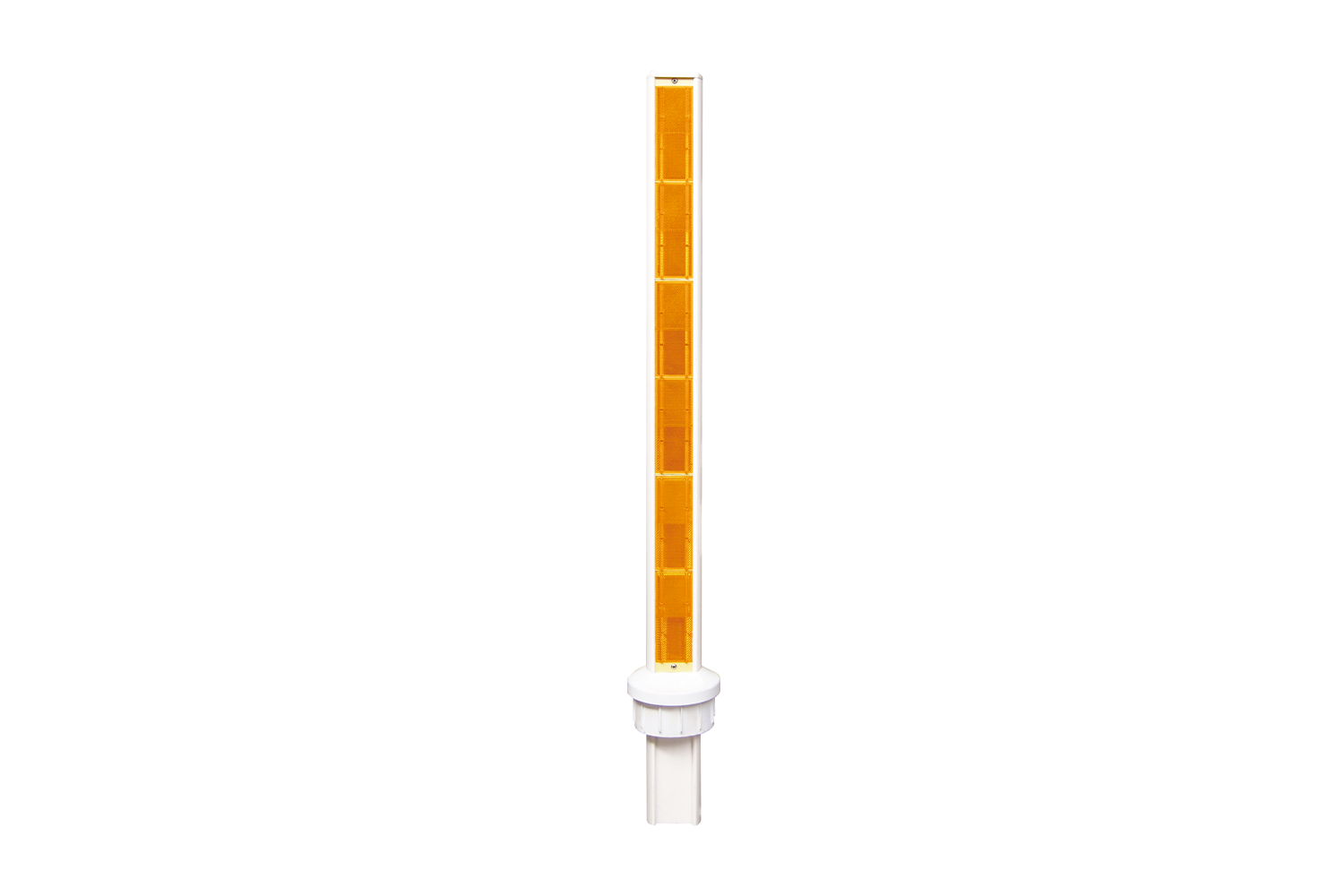

DPA-Y(W) Column Edge Line Induction Sign
Instructions: 1. Type A is installed on wavy beam steel guardrails, Type B is suitable for sections without guardrails; 2. The column edge line induction sign consists of a column body, reflective material, and a column cap flange; 3. The column body is formed by extruding elastic engineering plastic, with an angle of 20 degrees between the two planes of the reflective material; 4. The material is made of non-metallic engineering plastic, and the reflective material uses wide-angle micro-prism reflective sheets; 5. The column cap flange is injection molded from elastic engineering plastic, the column body passes through the column cap flange, and is fixed to the guardrail post by the column cap flange, ensuring a tight fit between the column body and the guardrail post, preventing wobbling and water penetration; 6. The reflective material is embedded in the grooves of the column body, and is fixed to the column body at the top and bottom by riveting..
