TPU Warning Column TPU-75-V
NO.
TPU Warning Column TPU-75-V
Product Use: Road warning, isolation, and diversion to better reduce safety hazards. Product Features: 1. The column body adopts a multi-layer reinforced structural design, with a compressive strength greater than 10 times that of conventional warning columns, and can withstand over a thousand compressive cycles. 2. The column body features a 45-degree spiral design, allowing the column to fall at a 45-degree angle during a frontal collision, which prevents the reflective film from being crushed and extends the lifespan of the reflective film. 3. The base includes bidirectional 7-bead glass bead reflection or bidirectional diamond-grade reflective film. 4. We promise to replace the column body free of charge within one year if it breaks (as our company is one of the drafting units for the "GB/T 24972-2010 Elastic Traffic Column" standard).
Key words:
Classification:

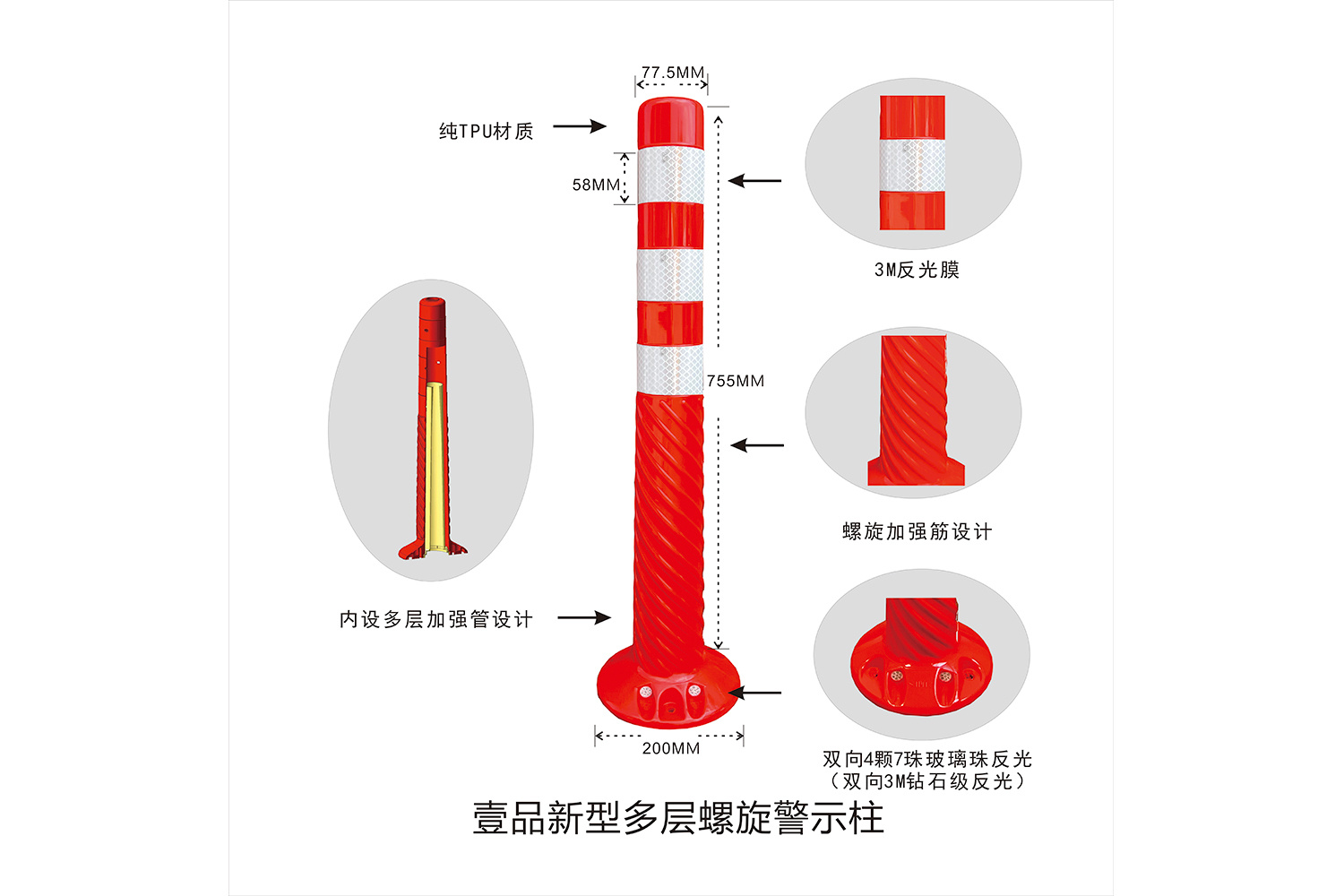

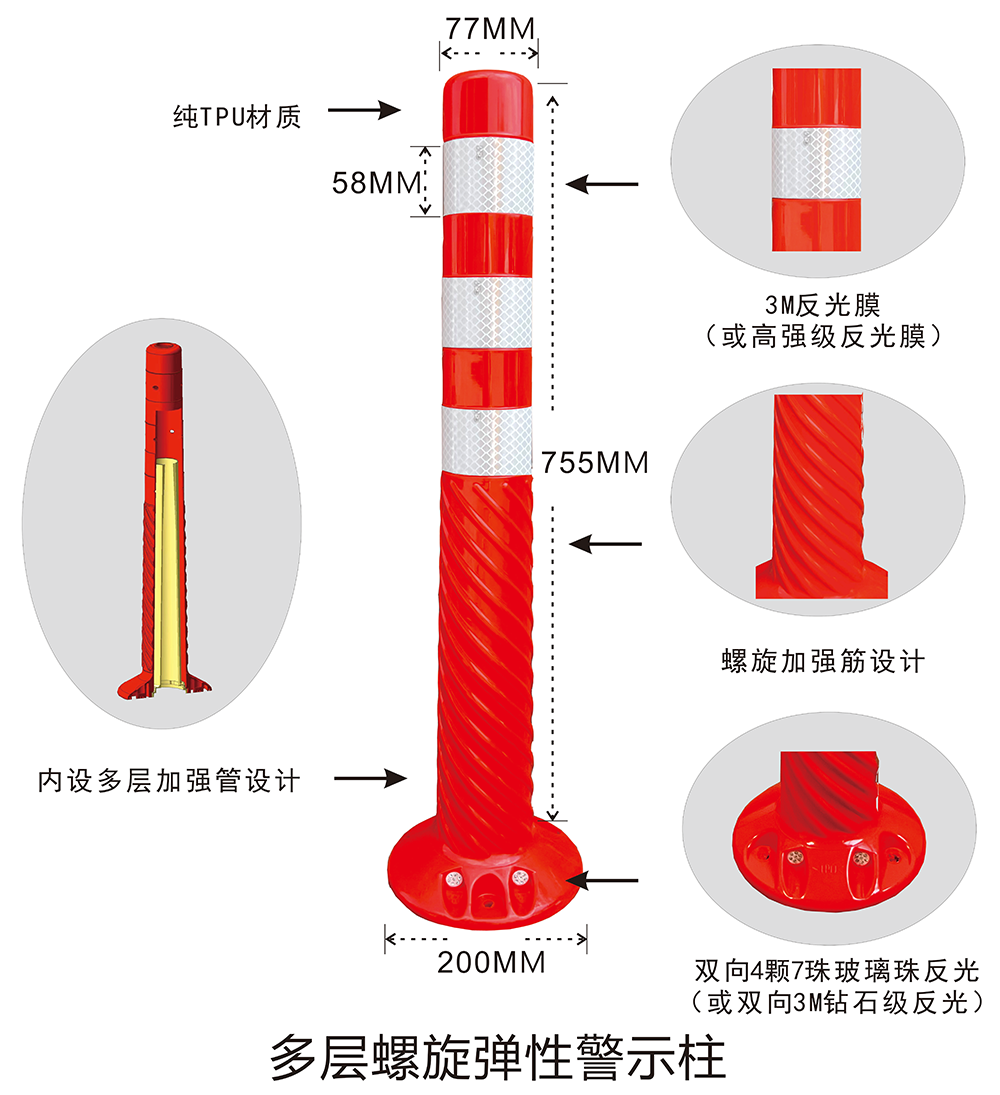

Name:Multi-layer Spiral Elastic Warning Column
Color:Fluorescent Red
Size:Top hole diameter 35 MM
Top diameter of the column 77 MM
Base diameter 200 MM
Height of the column 755 MM
Reflective film width 58 MM
Packing size:850*430*800MM
Packing quantity:25 pieces
Temperature range:-25℃ ~ 60℃
Standard requirements: The column meets the "GB/T 24972-2010 Elastic Traffic Column" standard.
The reflective film meets the requirements of GB/T 18833 TYPE IV and above.
Applicable scope: Urban expressways, interchange elevated ramps, etc.
Product use:Road warning, isolation and diversion, better reducing safety hazards.

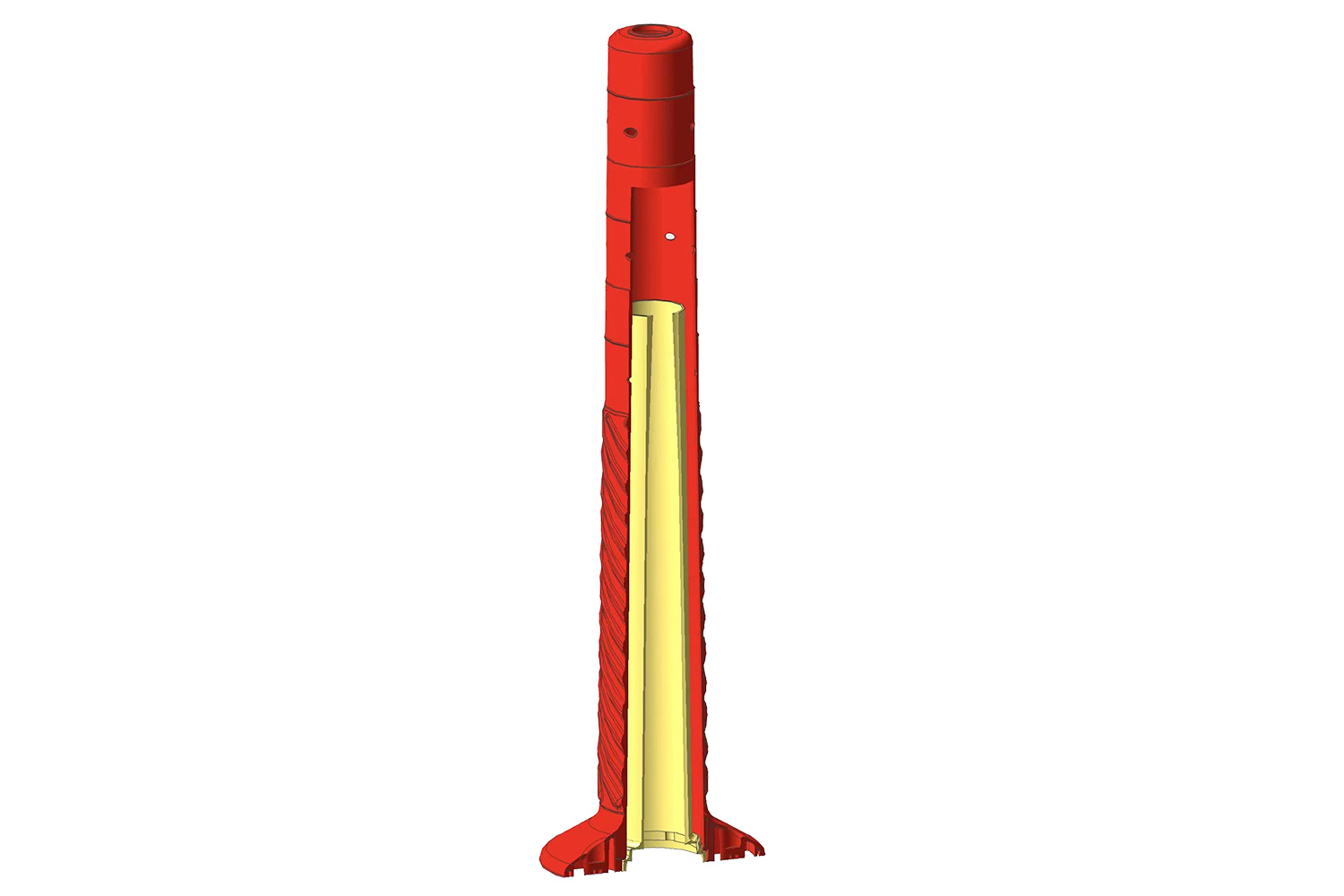

Product features:1. The column adopts a multi-layer reinforced structure design, with compressive strength greater than 10 times compared to conventional warning columns, and can withstand over a thousand compressions.

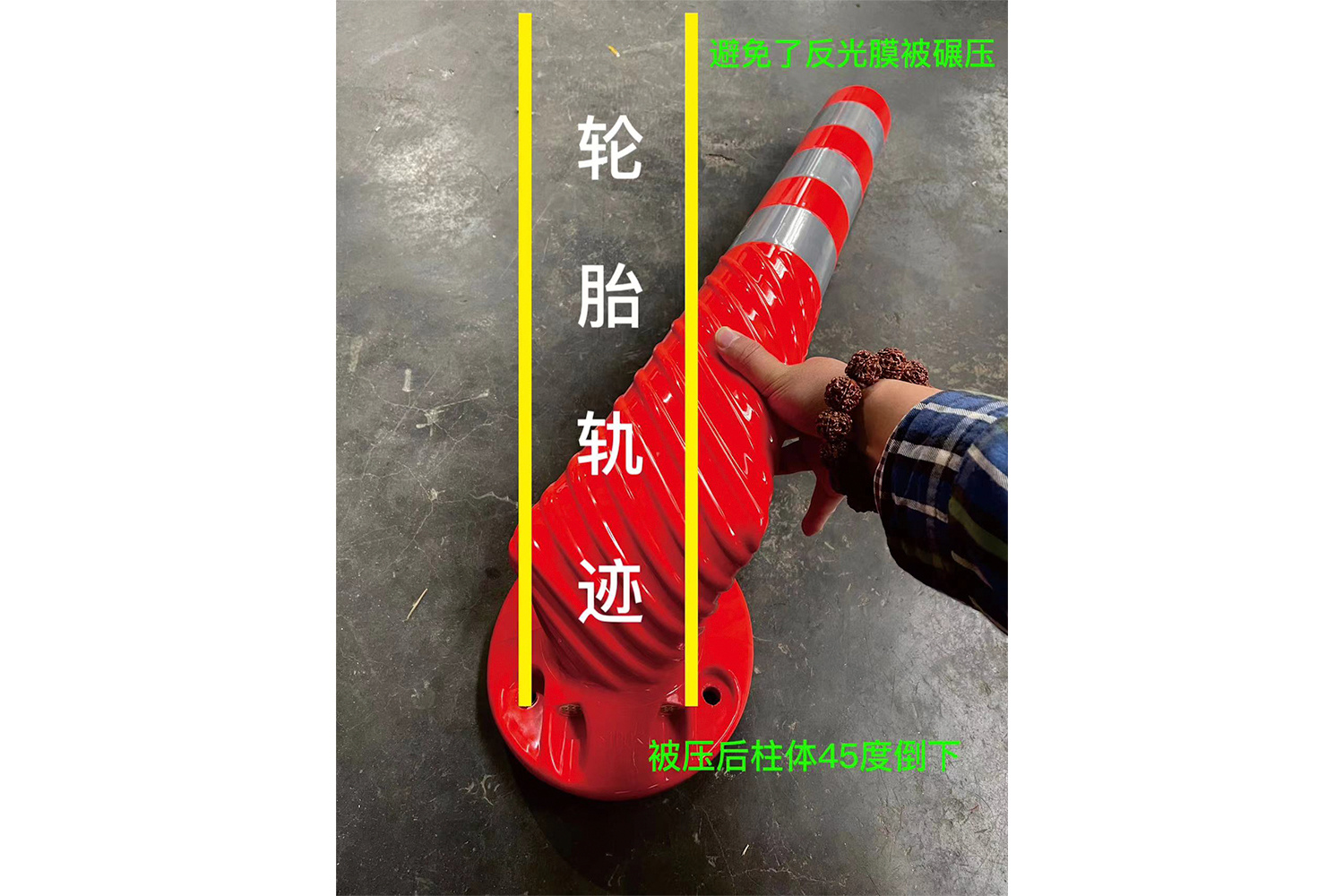

2. The column adopts a 45-degree spiral design, when a frontal collision occurs, the 45-degree slope of the column falls down, which can avoid the reflective film from being crushed, extending the service life of the reflective film.
3. The base includes bidirectional 7-bead glass bead reflection or bidirectional diamond-grade reflective film.
4. A promise of free replacement within one year if the column breaks.(Because our company is one of the drafting units of the "GB/T 24972-2010 Elastic Traffic Column" standard.).
